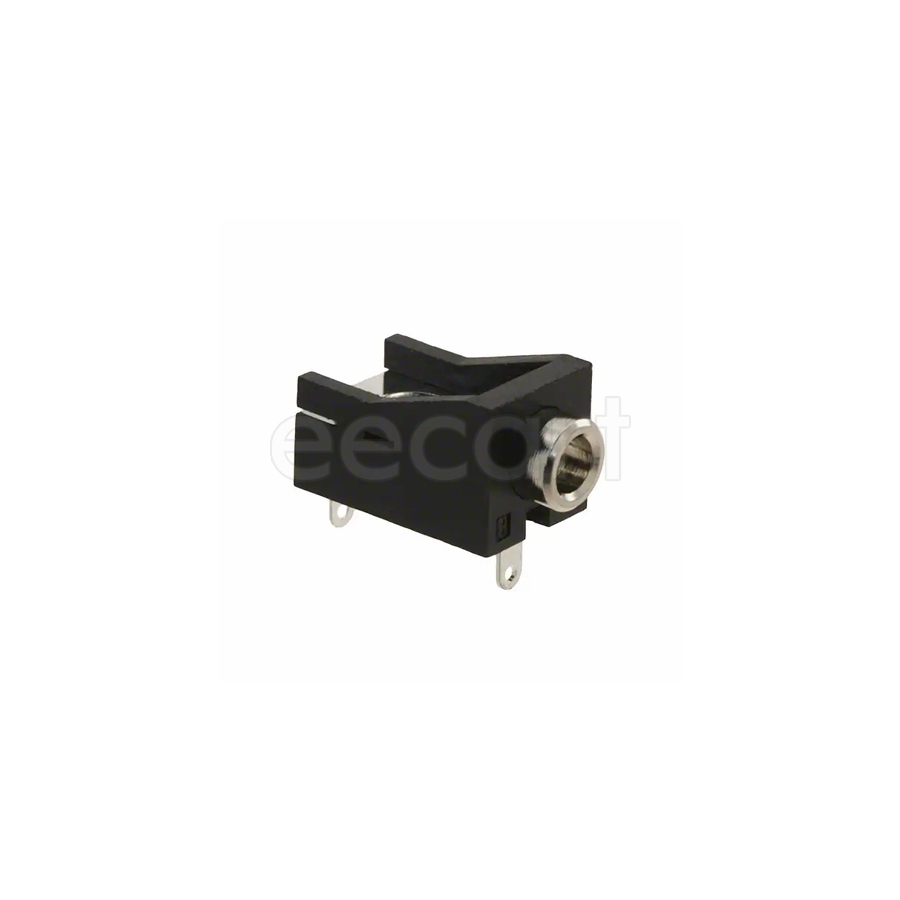

MJ-3536N
Manufacturer:
Same Sky
Mfr.Part #:
MJ-3536N
Datasheet:
Description:
Audio / Video Connectors Through Hole Female Number of Positions:2 Horizontal Phone Jack
| Parameter | Value |
|---|---|
| Termination | Solder |
| Diameter | 3.5 mm |
| Packaging | Bulk |
| Voltage Rating | 12 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Current Rating | 1 A |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Body Material | Brass |
| Number of Ports | 1 |
| Number of Conductors | 2 |
| Number of Positions | 2 |
| Connector Type | Phone Jack |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
Stock: 5609
Distributors
pcbx
pcbxUnit Price$0.48047
Ext.Price$0.48047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.48047 | $0.48047 |
| 10 | $0.40951 | $4.09510 |
| 25 | $0.38386 | $9.59650 |
| 50 | $0.36506 | $18.25300 |
| 100 | $0.34796 | $34.79600 |
| 300 | $0.32931 | $98.79300 |
| 500 | $0.31166 | $155.83000 |
| 1000 | $0.29495 | $294.95000 |
